Tile Roof Underlayment Replacement —
Santa Ana Complete Guide
Keep your tile. Replace the failed felt beneath it. An underlayment relay costs $5,500–$12,000. A full tile replacement costs $33,000–$48,000. Most Santa Ana tile roofs need a relay. Read our full tile roofing guide to understand all the options for Santa Ana tile roofs.
WHAT MO ST HOMEOWNERS DON’T KNOW
What Is a Tile Roof Underlayment Relay?
Most Santa Ana tile homeowners don’t know this service exists until we show them. If your tile roof is over 15 years old and you’ve been quoted $35,000–$48,000 for a full tile replacement, stop. Have the underlayment condition assessed separately first.

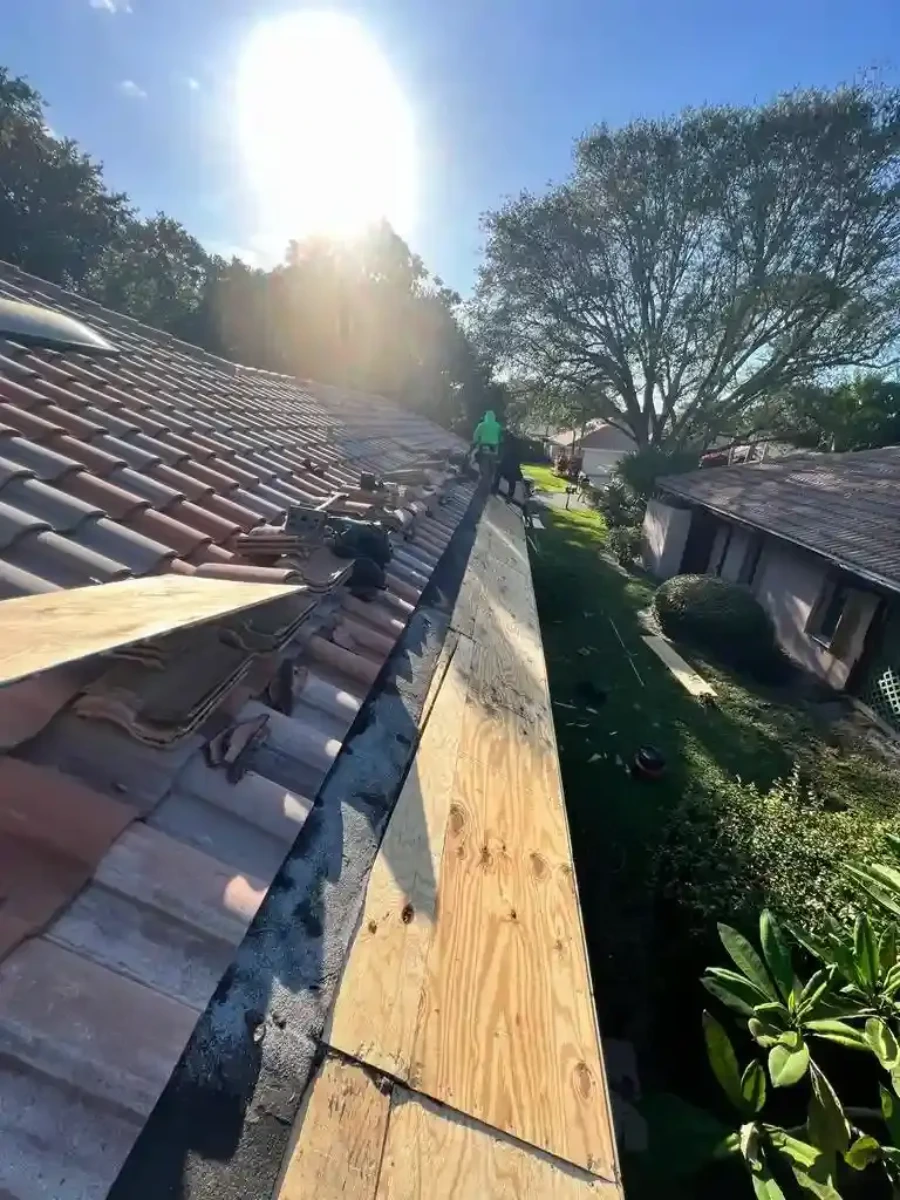

Step 1: Remove Tile in Numbered Sections
Every tile is removed in numbered, stacked sections — so every tile goes back exactly where it came from and the pattern is preserved. We inspect each tile individually during removal.
Step 2: Strip Felt, Inspect Deck
Old underlayment is stripped. Every sheet of OSB or plywood is checked for rot, soft spots, and structural integrity. Any damaged sections are replaced before new underlayment goes down — documented and quoted separately.
Step 3: New Underlayment + Tile Relay
New 40-lb mineral-surfaced cap sheet or equivalent synthetic underlayment goes down. Original tile is relaid. OC sheathing inspection and completion inspection required. You receive the closed permit record when the job is complete.
WHY UNDERLAYMENT FAILS FIRST
Why Does Underlayment Fail Before the Tile Does in Santa Ana?
Clay tile lasts 50–80 years. Concrete tile lasts 30–50 years. Standard 30-lb organic felt underlayment lasts 15–20 years in Santa Ana’s climate.
Heat Bakes the Felt Daily
Santa Ana roof decks reach 130–150°F on summer afternoons near the Urban Heat Island. The tile above is protected. The felt beneath it is baking and drying daily. After 15 years, it’s brittle, cracked at nail holes and overlaps, and no longer waterproofing.
Wind Dehydrates Further
The Santa Ana winds — dry, hot, 40–80 mph events October–February — accelerate the drying process further. A Meredith Parkwood or South Coast Metro tile roof can look flawless from the street while actively leaking into the attic — ceiling stains develop 12–24 months after underlayment failure begins.
PRICING & COMPARISON
What Does a Tile Underlayment Relay Cost in Santa Ana?
| Scope | Range | Notes |
|---|---|---|
| Full relay — standard concrete tile (2,000–2,500 sq ft) | $6,500–$11,000 | OC permit included |
| Full relay — clay tile, common profiles | $7,500–$12,000 | Higher tile handling care |
| Full relay — clay tile, discontinued/historic profiles | $9,000–$15,000+ | Sourcing time for matching tile |
| Partial relay (one slope or section) | $2,500–$5,500 | OC permit required if over 1 square |
| Decking replacement (if rot found) | $4–$8/sq ft additional | Quoted before work proceeds |
We’ve walked homeowners back from $42,000 tile replacement quotes when what they needed was a $7,400 relay. That’s not a rare edge case — it’s a regular conversation we have with homeowners in Meredith Parkwood and South Coast Metro every month.
BY NEIGHBORHOOD
Underlayment Relay by Santa Ana Neighborhood
Different neighborhoods, different tile profiles, different sourcing requirements — here’s what matters where you live:
Floral Park & French Park
Pre-1945 Spanish Colonial homes with original Santa Ana Clay tile. The Historic Resources Commission restricts material substitution on designated properties. We confirm the tile profile and verify replacement tile availability before committing to a relay.
South Coast Metro & Meredith Parkwood
Highest concentration of relay candidates in Santa Ana. 1960s–70s homes with Eagle Capistrano, Boral Villa, or generic concrete S-tile on original 30-lb felt — 45–55 years old. Eagle Capistrano 900 and Boral Villa 900 profiles are still in production and readily available.
Delhi & Cabrillo Park
Dense residential areas with high wind exposure from the 55 freeway corridor. Wind event damage and underlayment failure often co-occur — wind shifts tile, exposing aged underlayment that fails within one or two rain events afterward.
FREQUENTLY ASKED QUESTIONS
Tile Underlayment Relay — Honest Answers
How do I know if my underlayment has failed without tearing up the roof?
Three indicators we check without destructive investigation: (1) Roof age — 15+ years with no relay means underlayment should be assessed. (2) Attic evidence — staining on rafters or decking indicates water intrusion that often traces to underlayment failure even when tile looks intact above. (3) Edge exposure — at rake ends and ridge, underlayment is sometimes accessible for a quick condition check. We assess underlayment condition on a standard free inspection without disturbing tile across the whole surface.
Will my original tile survive the relay process?
On a well-executed relay on a maintained roof, 95–98% of concrete tiles survive intact. Clay tile has slightly higher handling risk — typically 3–7% breakage on aged clay. We inspect every tile during removal and quote replacement tile cost based on profile and current availability before the job starts. There are no surprise breakage charges.
Does a tile underlayment relay affect my homeowners insurance?
Positively, in most cases. A completed relay with a closed OC building permit and new underlayment is a significant insurability improvement. Several OC insurers — including those issuing non-renewal notices based on roof age — accept a relay with permit documentation as satisfying their upgrade requirement. We’ve seen State Farm and Farmers rescind non-renewal decisions on South Coast Metro and Meredith Parkwood properties after reviewing relay documentation.
How long does a tile underlayment relay take?
Permit filing: 1–3 business days. Tile removal, underlayment replacement, sheathing inspection, and tile relay: 3–5 working days on site. Completion inspection and permit close: 1–2 business days. Total from contract to permit close: typically 10–14 business days. Any deck repair findings are communicated and quoted in writing before we proceed.
Find Out If You Need a Relay or a Replacement — Free Assessment
We inspect the underlayment condition, assess your tile, check the deck, and give you a written recommendation with photos — before you decide anything. CSLB C-39 Licensed · Eagle Authorized Installer · OC Permitted Every Job. Serving 92701 · 92703 · 92704 · 92705 · 92706 · 92707 · 92708
Call (657) 210-3803 →RELAY $5K–$12K · REPLACEMENT $33K–$48K
Relay or Replace? The Difference Is $30,000.
Most South Coast Metro tile roofs need a relay — not full replacement. We tell you which before any commitment.
📞 Call (657) 210-3803 — Free EstimateWHAT SANTA ANA HOMEOWNERS SAY
Real Reviews from Santa Ana Homeowners
“I was quoted $44,000 for a full tile replacement. They told me my tile was fine, the underlayment had failed. Relay at $9,800. Same result. I had the OC permit documentation, the sheathing inspection sign-off, and the new underlayment spec — everything I needed for my insurance file.”
“During the sheathing inspection, they found 3 sections of soft decking. They called me, photographed it, quoted the repair, and waited for my approval before proceeding. No surprises. The final bill was exactly what the revised estimate said. In roofing, that’s rare.”
“My 1944 house has original Santa Ana Clay Mission tile. They sourced matching tile from a Grand Avenue supplier before starting, so breakage during handling was covered with the same profile. The relay looks exactly like the original roof. Historic Resources Commission had no issues with the permit.”
FREE · NO OBLIGATION · WRITTEN REPORT
Free Tile Roof Inspection — Written Report
We check every tile, the underlayment condition, and the deck. No charge. Before any decision.
📞 Call (657) 210-3803 — Free EstimateSERVICE AREAS IN SANTA ANA
Standard 30-lb felt lasts 15 to 20 years in Santa Ana climate. The UV exposure, thermal cycling from 95-degree days to 55-degree nights, and salt moisture off the Pacific all accelerate degradation. Most South Coast Metro and Meredith Parkwood tile roofs are now 45 to 55 years old — the underlayment failure window.
A relay means the tile comes off, the failed underlayment is removed, new underlayment goes down, and the tile goes back. The tile is numbered before removal and relayed in the same position. If a tile breaks during handling — normal on older profiles — we have replacement stock on hand.
We Serve Every Neighborhood in Santa Ana
All Santa Ana zip codes — 92701 · 92703 · 92704 · 92705 · 92706 · 92707 · 92708. CSLB C-39 licensed. OC permitted every job. Free estimates.
Floral Park
Historic Spanish tile homes — we know every profile
French Park
Pre-war construction, landmark properties
Delhi & Willard
High wind exposure — 6-nail standard essential here
Washington Square
Urban Heat Island — CRRC-rated materials recommended
South Coast Metro
1960s–70s concrete tile — highest relay concentration
Meredith Parkwood
Eagle Capistrano and Boral Villa profiles — we stock them
Cabrillo Park
Mixed era — 1950s through 1980s construction
Downtown Santa Ana
Civic Center area — fast permit turnaround from OC Building
Also serving Garden Grove, Orange, Tustin, Fountain Valley · Emergency response throughout central OC during wind season (October–February)
